High-stress flexible packaging faces severe dynamic forces during transit, handling, and storage. Critical failure points such as flex-cracking, puncture, and oxygen degradation directly result in compromised product integrity, accelerated spoilage, and ruined shelf appeal. The financial impact of these failures extends far beyond wasted materials, leading to rejected shipments, brand damage, and extensive product recalls.
The core engineering challenge lies in designing laminate structures that successfully balance mechanical toughness, stringent gas barrier requirements, and conversion realities. Packaging engineers must achieve this delicate equilibrium without over-engineering the material or compromising high-speed machine runnability on automated packaging lines. Standard polymer films frequently fall short when subjected to sharp edges, heavy liquid volumes, or extreme temperature fluctuations.

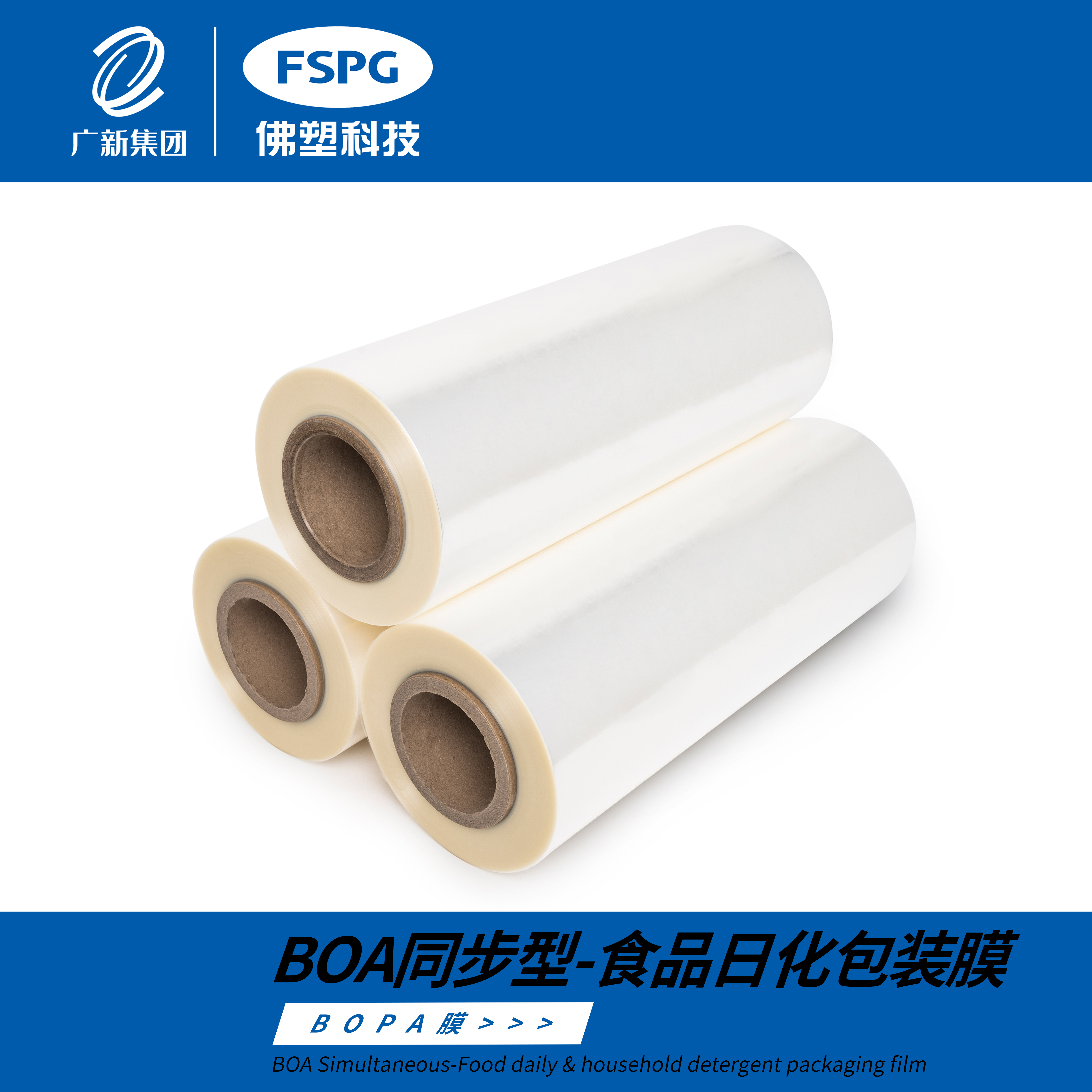

Biaxially Oriented Polyamide (BOPA) film serves as a highly specialized substrate within multi-layer laminates designed to solve these exact failure points. By integrating BOPA FILM into the packaging architecture, engineers can drastically improve durability and barrier performance. This article evaluates the technical structure, optical clarity, conversion realities, and comparative value of BOPA against other oriented films to guide precise material specification.
Mechanical Superiority: BOPA film provides exceptional puncture resistance, impact strength, and flex-crack resistance, making it essential for liquid, frozen, and vacuum-sealed food packaging film applications.
Targeted Barrier Performance: It acts as an excellent barrier to oxygen, aromas, and chemicals, but requires lamination with moisture-resistant films (like PE or BOPP) due to its inherent hygroscopic nature.
Aesthetics & Shelf Appeal: Beyond performance, BOPA offers high gloss and optical clarity, ensuring retail packs maintain a clean, premium appearance without clouding or wrinkling under stress.
Comparative Positioning: While more expensive than BOPP or BOPET, BOPA is the necessary choice when packaging failure rates due to mechanical stress or oxygen ingress outweigh raw material savings.
Conversion & Runnability Realities: Successful implementation requires strict environmental controls to mitigate moisture absorption and careful monitoring of the coefficient of friction (COF) on high-speed packaging lines.
Standard packaging films often fail under dynamic stress because their polymer chains lack the necessary alignment to absorb and distribute kinetic energy. When flexible pouches are dropped, compressed, or repeatedly folded, the concentrated stress leads to micro-fractures and catastrophic seal failures. Biaxially Oriented Polyamide alters the baseline material science of the resin, transforming it into a structural powerhouse capable of withstanding severe mechanical abuse.
The manufacturing process involves stretching the extruded polyamide resin in both the machine direction (MD) and the transverse direction (TD). This biaxial orientation, achieved through either a tenter frame or a simultaneous double-bubble process, forces the polymer chains into a tightly aligned, crystalline grid. This structural alignment is the primary reason the film exhibits exponential increases in strength compared to cast or unoriented nylon. We see this difference clearly when running drop tests on large format liquid pouches.
The resulting material characteristics define its role in high-performance laminates. The orientation process yields extraordinary toughness and elongation properties, allowing the film to absorb kinetic energy without tearing. Despite its rugged mechanical profile, the film maintains high gloss and exceptionally low haze values, keeping retail packs looking clean and vibrant. The dense molecular structure provides an outstanding Oxygen Transmission Rate (OTR), effectively blocking oxygen ingress and preserving volatile aromas within the package. Furthermore, the material remains stable across a broad operating temperature range, performing reliably from sub-zero deep freeze environments to the extreme heat of retort sterilization.
The high mechanical strength of this oriented polyamide allows converters to leverage downgauging strategies. By utilizing a thinner gauge of film, packaging engineers can reduce overall material consumption and weight while maintaining equivalent package integrity compared to thicker, unoriented alternatives. For example, dropping from a 15-micron to a 12-micron film can yield significant yield improvements on the master roll.
However, utilizing this material requires managing a significant hygroscopic trade-off. Polyamide naturally absorbs moisture from the surrounding environment. This absorption negatively impacts the Water Vapor Transmission Rate (WVTR) and can cause dimensional instability, such as curling or wrinkling. Consequently, it is rarely used as a standalone material; it must be laminated with moisture-resistant sealant webs, such as Polyethylene (PE) or Biaxially Oriented Polypropylene (BOPP), to protect the nylon layer and ensure structural stability.
To understand the performance leap, consider the baseline metrics of oriented versus cast polyamide:
Performance Metric | Cast Nylon (CPA) | Oriented Nylon (BOPA) | Testing Standard |
|---|---|---|---|
Tensile Strength (MD) | ~80 MPa | ~250 MPa | ASTM D882 |
Puncture Resistance | Moderate | Exceptional | ASTM F1306 |
Oxygen Transmission (OTR) | ~40 cc/m2/day | ~25 cc/m2/day | ASTM D3985 |
Flex Crack Resistance | Good | Superior | Gelbo Flex Test |
Mapping structural properties directly to end-use outcomes is critical for maximizing shelf-life extension and minimizing failure rates. When integrated as the structural and oxygen-barrier layer in a multi-layer food packaging film, the material directly addresses specific environmental and physical threats on the production floor and in transit.
In vacuum packaging for processed meats and cheeses, high puncture resistance is non-negotiable. Bone-in products, sharp crusts, or rigid edges constantly press against the packaging material under vacuum pressure. The superior elasticity and puncture resistance of oriented nylon prevent these sharp edges from breaching the seal, thereby maintaining the vacuum, preventing oxidation, and extending shelf life. We routinely specify this for heavy primal cuts of beef where standard polyester would fail immediately.
For liquid and spouted pouches, dynamic handling during transportation introduces severe hydraulic shock and repetitive folding. Gelbo flex-crack resistance becomes the most critical metric. Heavy liquid packaging relies on the material's ability to flex thousands of times without developing pinholes or micro-leaks, ensuring the product reaches the consumer intact. A standard 3-liter detergent pouch will destroy a BOPET barrier layer during a standard vibration test, whereas the nylon structure survives.
Frozen food applications demand materials that do not become brittle at sub-zero temperatures. Oriented polyamide maintains its structural integrity, flexibility, and impact resistance even in deep-freeze conditions. This prevents freezer burn caused by micro-fractures in the barrier layer and eliminates shatter-type seal failures when frozen packages are dropped or mishandled by warehouse staff.
Retort and hot-fill applications subject packaging to extreme heat and pressure during sterilization. The high melting point and thermal stability of the film ensure it resists delamination, maintains dimensional stability, and preserves its oxygen barrier properties throughout the rigorous retort cycle. The typical retort process involves several harsh phases:
Air Evacuation: Removing ambient air to prevent ballooning during the heating phase.
High-Pressure Steam Injection: Rapidly raising the ambient temperature to 121°C (250°F) or higher.
Hold Time: Maintaining peak temperature and pressure for 30 to 60 minutes to achieve commercial sterility.
Cooling Cycle: Rapidly dropping the temperature using cold water while maintaining overpressure to prevent pouch rupture.
Beyond the food sector, these same mechanical properties are highly valued in demanding industrial applications. It is frequently specified for aggressive chemical packaging, medical device sterilization pouches that require puncture resistance against surgical instruments, and vacuum-insulated panels used in advanced refrigeration and construction.
Selecting the correct oriented film for a flexible packaging laminate requires evaluating the top three substrates across multiple performance dimensions. Understanding the specific strengths and limitations of each material guides accurate specification and prevents costly over-engineering on the converting floor.
Biaxially Oriented Polypropylene (BOPP) is widely regarded as the moisture specialist. It offers high stiffness, an exceptional water vapor barrier (WVTR), and a generally lower cost profile. However, it lacks the extreme mechanical toughness and oxygen barrier properties of oriented nylon. Because their properties are complementary, they are frequently laminated together; the nylon provides strength and oxygen resistance, while the BOPP provides moisture protection, printability, and a reliable sealant interface.
Biaxially Oriented Polyethylene Terephthalate (BOPET) provides high tensile strength, excellent optical clarity, superior thermal stability, and a balanced gas and moisture barrier at a competitive price point. While BOPET is strong under static tension, it is highly susceptible to flex-cracking and puncture under dynamic stress compared to the superior elasticity and impact resistance of oriented nylon. If you drop a BOPET pouch filled with water, it is highly likely to fracture at the crease points.
The following matrix compares the primary attributes of these three oriented films:
Property Dimension | BOPA (Nylon) | BOPP (Polypropylene) | BOPET (Polyester) |
|---|---|---|---|
Puncture Resistance | Excellent | Moderate | Good |
Flex-Crack Resistance | Excellent | Moderate | Poor |
Oxygen Barrier (OTR) | Excellent | Poor | Good |
Moisture Barrier (WVTR) | Poor (Hygroscopic) | Excellent | Good |
Optical Clarity / Gloss | High | High | Very High |
Runnability / Stiffness | Moderate (Soft) | High (Stiff) | High (Stiff) |
Value-influencing selection logic dictates that oriented nylon should only be shortlisted when BOPET or BOPP cannot meet the mechanical durability or oxygen barrier thresholds required by the specific product environment. If the package will not face heavy liquid sloshing, sharp bone-in punctures, or strict oxygen exclusion requirements, specifying BOPET or BOPP will yield better economic efficiency.
Working with oriented polyamide introduces specific engineering and production realities that must be managed to prevent costly conversion errors, wasted material runs, and compromised final packaging. You cannot treat this film like standard polyester on the press.
Moisture management during conversion is the most critical risk factor. Because the film is highly hygroscopic, exposure to ambient humidity causes rapid moisture absorption. This leads to severe film curling, wrinkling, dimensional distortion, and a temporary loss of barrier properties before lamination can occur. Converters must implement strict climate-controlled storage, utilize vapor-barrier wrapping for all roll stock, and ensure immediate processing once the rolls are unwrapped. We typically aim for a relative humidity below 50% in the converting hall.
High-speed machine runnability depends heavily on controlling the Coefficient of Friction (COF). The film's natural surface characteristics can cause drag over metal forming collars. Incorporating precise slip additives is essential to ensure smooth feeding, forming, and sealing on high-speed Form-Fill-Seal (FFS) packaging lines without jamming or stretching the web. If the COF is too high, the film will stutter on the forming tube, causing misaligned seals and immediate line downtime.
During adhesive and extrusion lamination, compatibility and process control are paramount. The film performs well with solvent-based, solventless, and extrusion lamination processes. However, strict tension control is required to prevent stretching the elastic nylon web relative to the stiffer PE or CPP sealant webs. Furthermore, allowing proper adhesive curing times is critical to ensure a destructive bond and prevent delamination under stress. We monitor the nip roller pressure closely to avoid trapping micro-bubbles in the adhesive layer.
Regarding printability, the material boasts a naturally high surface energy, making it highly receptive to various printing inks without the need for aggressive corona treatment. Converters must exercise caution during the printing process; excessive heat in the drying tunnels can extract moisture too rapidly, inducing brittleness and compromising the film's inherent flex-crack resistance. Web temperatures must be dialed in precisely based on the specific ink system being used.
Navigating the regulatory and environmental landscape is essential for modern packaging specification. Standard regulatory frameworks, including the FDA and EFSA, generally recognize oriented polyamide as safe for direct food contact. However, packaging engineers must verify that all specific slip agents, anti-block additives, and proprietary coatings applied to the film comply with regional food safety mandates. Documentation must be rigorous and up to date.
The industry faces a significant recyclability challenge regarding traditional multi-material laminates. Structures combining nylon with dissimilar polymers like Polyethylene (PE) or Polypropylene (BOPP) are notoriously difficult to recycle mechanically. Because the layers cannot be easily separated, these high-performance laminates typically end up in landfills or incineration facilities. Mechanical recyclability remains a major hurdle for these specific architectures, and we must plan accordingly.
As a near-term sustainability strategy, sustainable downgauging offers measurable benefits. By leveraging the extreme mechanical strength of the material, engineers can reduce film thickness. Moving from a standard 15-micron gauge down to 12 or even 10 microns directly decreases overall plastic consumption, lowers transportation weights, and serves as an immediate carbon footprint reduction strategy without sacrificing package integrity. This requires precise tension control on the lamination line to handle the thinner web.
Looking forward, the industry is witnessing a shift toward fully recyclable, mono-material structures, particularly Biaxially Oriented Polyethylene (BOPE) laminated to standard PE sealants. While these emerging alternatives offer excellent recyclability, current BOPE films still exhibit performance gaps compared to oriented nylon, specifically regarding extreme puncture resistance, high-temperature thermal stability on packaging lines, and absolute oxygen barrier capabilities. We are testing these alternatives, but they are not yet a 1:1 drop-in replacement for high-stress applications.
To implement this material successfully and avoid costly failures on the packaging line, follow these specific steps:
Audit your current packaging failure rates to determine if flex-cracking or puncture is the root cause before upgrading to a nylon structure.
Specify the exact COF requirements with your film supplier to ensure compatibility with your specific VFFS or HFFS forming collars.
Conduct Gelbo flex testing on prototype laminates to verify that the barrier layer survives the anticipated transportation vibration.
Implement strict humidity controls in your raw material storage area to prevent moisture absorption before lamination.
A: BOPA stands for Biaxially Oriented Polyamide, commonly referred to as oriented nylon. The material is manufactured by stretching extruded polyamide resin in both the machine and transverse directions, which aligns the polymer chains to significantly increase mechanical strength and barrier properties.
A: There is no functional difference; they are the exact same material. BON stands for Biaxially Oriented Nylon, which is simply the common commercial and industry terminology used in North America for Biaxially Oriented Polyamide (BOPA).
A: No. It is highly hygroscopic, meaning it readily absorbs moisture from the environment, making it a poor moisture barrier. To protect the packaged product and maintain the film's dimensional stability, it must be laminated with moisture-resistant films like PE or BOPP.
A: It is preferred due to its exceptional puncture resistance and superior oxygen barrier. These properties prevent sharp products, like bone-in meats, from piercing the bag under vacuum pressure while simultaneously keeping oxygen out to prevent rapid spoilage.
A: The material's inherently high mechanical strength allows packaging designers to utilize thinner films. This downgauging process reduces overall plastic waste, lowers material costs, and decreases transportation weight without compromising essential puncture resistance or product shelf life.
A: Generally, no. It is typically laminated to dissimilar polymers, such as Polyethylene (PE), to create a necessary moisture barrier. This creates a multi-material structure that is currently incompatible with standard mechanical recycling streams, though chemical recycling technologies are evolving.
A: It performs exceptionally well in retort applications. Its high melting point and excellent thermal stability allow it to withstand the extreme heat and pressure of sterilization processes without delaminating, melting, or losing its critical oxygen barrier properties.
