Specifying flexible packaging materials is a high-stakes engineering decision where a single material failure leads to product spoilage, costly recalls, and compromised brand integrity. Choosing the correct thickness for your packaging substrate requires balancing mechanical strength, barrier requirements, and yield efficiency. Over-engineering inflates unit costs and reduces yield per roll, while under-engineering risks punctures, flex-cracking, and compromised oxygen barriers during transit.

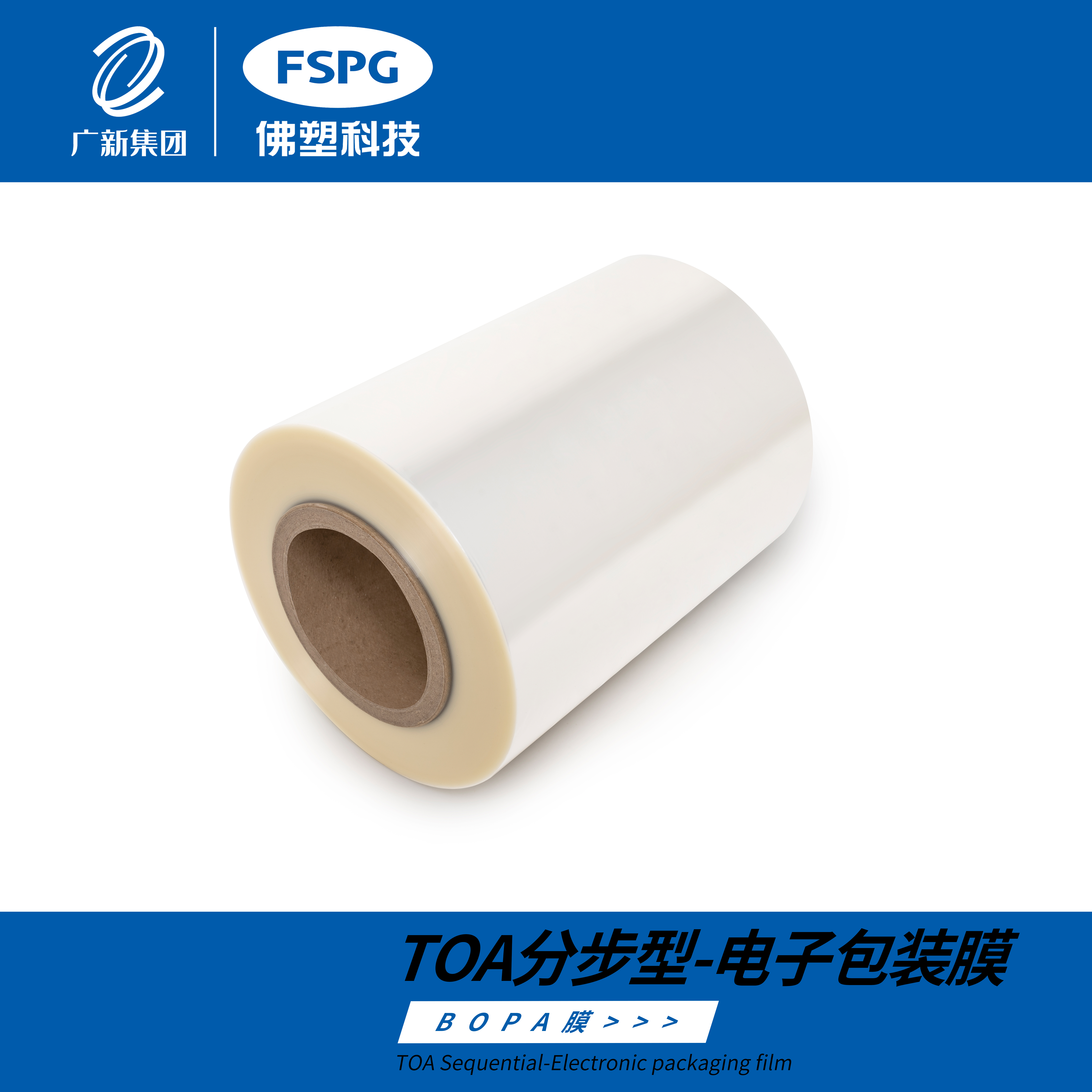

This technical framework provides the criteria needed to evaluate and select the precise thickness of BOPA FILM based on product characteristics, supply chain rigors, and multi-layer lamination structures. By understanding how gauge impacts physical performance, packaging engineers can optimize material selection for both protection and operational efficiency.
Application-Specific Gauges: Standard lamination typically requires 12µm to 15µm, while demanding applications like bone-in meats or deep-freeze require 25µm or higher.
Mechanical vs. Barrier Trade-offs: While thicker films exponentially increase puncture and flex-crack resistance, oxygen barrier improvements are marginal compared to the impact of specialized coatings (like PVDC or EVOH).
Yield Economics: Thinner films offer higher area yield per kilogram, requiring a precise cost-to-performance analysis to optimize the total cost of packaging.
Quality Consistency: Uniform thickness (flatness) is critical; gauge variations lead to poor seal integrity, curling, and machinability issues on high-speed lines.
Process Impact: The method of manufacturing—simultaneous vs. sequential orientation—directly dictates thickness uniformity and isotropic mechanical performance across the web.
In the flexible packaging sector, biaxially oriented polyamide film stands out due to its exceptional toughness, high tensile strength, wide temperature tolerance, and reliable gas barrier properties. The biaxial orientation process aligns the polyamide polymer chains in both the machine direction (MD) and transverse direction (TD), creating a highly stable and resilient web. These characteristics make it the standard choice for vacuum packaging, retort pouches, and liquid packaging where standard substrates like BOPP or BOPET would fail under mechanical stress or extreme temperature variations. When you run these materials on high-speed lines, the inherent stability prevents web breaks and maintains registration accuracy.
When comparing different packaging substrates, biaxially oriented polyamide film allows for significant downgauging. Its superior tensile strength and puncture resistance at thinner profiles mean packaging engineers can often substitute a thicker BOPP layer with a thinner polyamide layer without sacrificing structural integrity. For example, a 15µm polyamide web can frequently outperform a 20µm or 25µm BOPP web in drop tests and puncture resistance metrics. BOPET offers excellent stiffness and heat resistance but lacks the flex-crack resistance and elongation properties found in nylon, making nylon the superior choice for applications subject to hydraulic shock or rough handling.
Material | Typical Gauge Range | Puncture Resistance | Flex-Crack Resistance | Primary Application Strength |
|---|---|---|---|---|
BOPA | 10µm - 30µm | Excellent | Excellent | Vacuum, Retort, Deep Freeze |
BOPET | 12µm - 23µm | Moderate | Poor | High Heat, Stiffness, Printing |
BOPP | 15µm - 40µm | Low | Moderate | Moisture Barrier, Snacks |
Evaluating film performance requires analyzing specific baseline metrics. Puncture resistance, typically measured in Newtons, determines how well the material withstands sharp edges from the packaged product. Flex-crack resistance, measured via the Gelbo flex test, indicates the material's ability to survive the vibration and folding inherent in transport. Oxygen Transmission Rate (OTR) measures the gas barrier efficiency. Altering the micron (µm) count directly impacts these metrics. Increasing the thickness exponentially improves puncture and flex-crack resistance, reinforcing the overall structural integrity of the multi-layer web, though it provides only marginal improvements to the baseline OTR. You must rely on coatings for significant barrier upgrades rather than just adding bulk to the base web.
Thin gauge films are engineered for applications where extreme mechanical abuse is unlikely, but high tensile strength and printability remain essential. Common use cases include lightweight snacks, standard processed meats, cheese packaging, and general-purpose boil-in-bag applications. The 12µm variant serves as the industry workhorse. It provides an optimal surface for high-resolution reverse printing and laminates seamlessly with polyethylene (PE) or cast polypropylene (CPP) sealant webs, creating a balanced structure suitable for standard retail distribution. Operators find that 12µm runs smoothly through rotogravure presses with minimal tension adjustments.
Medium gauge films provide the necessary reinforcement for heavier or more demanding products. Use cases include heavy liquid stand-up pouches, spouted formats, bulk institutional food packaging, and standard commercial vacuum pouches. Liquids exert significant hydraulic shock during transit, particularly during drop events. The increased gauge in the 15µm to 20µm range absorbs these kinetic forces, preventing flex-cracking and pinholing that would otherwise lead to catastrophic package failure and product leakage. When designing a 5-liter liquid pouch, starting with a 15µm base is standard practice to survive the drop test protocols.
Heavy gauge films are reserved for the most aggressive packaging environments. Applications include bone-in meats, frozen seafood with sharp fins or shells, sharp-edged hardware components, and cold-formed blister packaging. Maintaining structural integrity at sub-zero temperatures is a primary challenge, as many standard polymers become brittle and shatter. Heavy gauge nylon packaging film retains its flexibility and puncture resistance even in deep-freeze conditions, ensuring the vacuum seal remains intact throughout the cold chain. You will often see 25µm specified for export meat shipments where handling is notoriously rough.
Assessing the physical profile of the product is the first step in specifying thickness. Smooth liquids require different mechanical properties than abrasive dry goods or sharp bones. Packaging engineers must calculate the required puncture resistance threshold based on anticipated distribution hazards. A product with sharp protrusions requires a thicker gauge to prevent the internal points from piercing the web during vacuum sealing or stacking. Conversely, smooth, homogenous products allow for downgauging, relying more on the sealant layer for burst strength rather than the outer web for puncture defense. Testing with actual product samples under vacuum is the only reliable way to validate this.
Supply chains subject packaging to constant vibration, dropping, and compression. Thickness interacts directly with flex-crack resistance. While thicker films offer greater absolute strength, overly rigid multi-layer structures can sometimes concentrate stress at fold points if not properly plasticized or matched with compatible lamination layers. The goal is to select a gauge that provides enough flexibility to absorb transport vibrations while maintaining enough rigidity to support the package format, particularly in stand-up pouches. Gelbo flex testing provides the empirical data needed to make this call.
Gauge variation across the film web is a defect that compromises packaging operations. The manufacturing process dictates this uniformity. Sequential stretching often results in slight variations, whereas simultaneous stretching technologies provide superior thickness tolerances, flatness, and isotropic shrinkage. Inconsistent thickness leads to uneven heat distribution during the sealing phase. This thermal variance creates weak seals, channel leaks, and costly spoilage, making precise gauge control just as important as the nominal thickness itself. When auditing a supplier, always check their cross-web thickness profile data.
Varying the thickness impacts how the film handles surface tension and retains corona or chemical treatments necessary for ink adhesion. The relationship between film gauge and the Coefficient of Friction (COF) is also vital for machinability. Thicker films behave differently on winding and forming-filling-sealing (FFS) machinery compared to thinner gauges. Ensuring the correct slip additives and surface finishes are applied relative to the film's thickness prevents jamming, dragging, or misalignment on high-speed packaging lines. A mismatched COF will shut down a line faster than almost any other material defect.
Film is purchased by weight but utilized by area. There is an inverse relationship between film thickness and yield, typically measured in square meters per kilogram. Thicker films reduce the available area per roll, increasing the material cost per package. Packaging engineers must calculate the true cost per package rather than looking solely at the cost per roll or kilogram. Optimizing the gauge ensures maximum yield without crossing the threshold into unacceptable failure rates. A simple spreadsheet tracking yield versus scrap rate will quickly reveal the optimal thickness.
The thickness of the polyamide layer cannot be evaluated in isolation; it must be assessed within the context of the entire multi-layer structure, such as BOPA/PE or PET/BOPA/CPP laminations. Synergies between layers often allow for strategic downgauging. For instance, upgrading the sealant layer to a high-performance metallocene PE or utilizing advanced barrier coextrusions can compensate for a thinner polyamide layer, reducing overall material weight while maintaining target performance metrics. You have to look at the composite strength of the entire web.
Modern packaging operations face intense pressure to reduce plastic usage and lower their carbon footprint. Source reduction through downgauging is a primary strategy. Evaluating the feasibility of reducing thickness from 15µm to 12µm using high-performance, simultaneously-oriented films allows brands to meet sustainability targets. When executed correctly, this reduction decreases polymer consumption and transport weight without sacrificing the mechanical properties required for product protection. It requires tight process control but pays off in material savings.
Polyamide is highly hygroscopic, meaning it readily absorbs moisture from the environment. Mismatched thicknesses or improper web tensions during lamination, combined with moisture uptake, inevitably lead to severe film curling. This curling disrupts printing registration and causes jamming on FFS machines. Mitigation tactics require strict environmental controls. Proper storage in climate-controlled facilities, keeping rolls wrapped in moisture-barrier foil until immediately before use, and ensuring rapid processing after unwrapping are mandatory operational protocols. If you leave an unwrapped roll on the floor over the weekend, it will be unusable by Monday.
Implementing a new film gauge requires rigorous pilot testing before committing to full-scale production. Always request Technical Data Sheets (TDS) from the manufacturer and run controlled machine trials. These trials verify that the coefficient of friction, dyne levels for printability, and web tension parameters align with the specified thickness on your specific equipment.
Conduct Gelbo flex testing to simulate transport wear and identify pinholing risks.
Perform burst testing to evaluate seal integrity under internal pressure.
Execute drop testing specifically for liquid applications to measure hydraulic shock resistance.
Analyze seal strength using a tensile tester to ensure the heat seal layer activates properly through the new gauge.
There is no universal standard for film thickness; the optimal gauge is a precise mathematical match to the product's physical demands, barrier requirements, and supply chain rigors. Selecting the right specification ensures product safety while maximizing yield and operational efficiency.
Audit your current failure rates to determine if punctures or flex-cracks indicate a need for a heavier gauge.
Calculate the area yield difference between your current thickness and a downgraded option to evaluate potential material savings.
Review your multi-layer lamination structure to identify opportunities where upgrading the sealant layer allows for a thinner polyamide web.
Implement strict moisture control protocols in your storage and processing areas to prevent curling and machinability issues.
Conduct comprehensive machine trials and Gelbo flex testing before finalizing any specification changes for full-scale production.
A: The industry standard for general food packaging lamination, such as standard processed meats and lightweight snacks, is typically 12µm to 15µm. This range provides an optimal balance of tensile strength, printability, and yield efficiency.
A: No. While thicker films slightly improve barrier properties, the oxygen transmission rate is primarily controlled by specialized coatings like PVDC or EVOH, not just the thickness of the base polyamide web.
A: Curling is usually caused by moisture absorption or mismatched web tensions during lamination. Polyamide is highly hygroscopic. If the film absorbs humidity before or during lamination, it expands differently than the other layers, resulting in a severe curl.
A: Bone-in meats require heavy gauge films, typically between 25µm and 30µm or higher. This thickness is necessary to provide the extreme puncture resistance required to prevent sharp bones from piercing the vacuum seal during transport and storage.
A: Yes. Thicker films require higher sealing temperatures and longer dwell times to ensure heat penetrates through the structure to melt the sealant layer. Inconsistent thickness across the web can lead to uneven heating and weak seals.
A: Simultaneous stretching technologies provide superior thickness uniformity, better flatness, and more balanced isotropic mechanical properties across the web compared to sequential stretching, which reduces gauge variation and improves machinability.
