The fundamental engineering conflict in barrier materials comes down to a single physical challenge. You must block liquid water from entering an enclosure while simultaneously allowing internal moisture vapor to escape. Product engineers and material specifiers face this issue daily. You need barrier membranes that pass strict regulatory standards for medical biohazard protection or meet extreme consumer demands in outdoor apparel. If you fail to balance these two forces, you get internal condensation, thermal stress, and structural failure. TPE Breathable Film solves this exact problem. It bridges the gap between basic non-porous plastics and highly expensive fluoropolymer membranes. You get a scalable, recyclable material that lets you tune the exact ratio of breathability to waterproofing for your specific application.
Mechanism of Action: TPE breathable films utilize either microporous structures (physical size exclusion) or monolithic hydrophilic blocks (chemical diffusion) to allow water vapor (under 0.04 microns) to pass while blocking liquid water droplets.
Performance Metrics: Evaluation requires balancing the Moisture Vapor Transmission Rate (MVTR) against Hydrostatic Head ratings, as maximizing one often impacts the other.
Material Advantages: Thermoplastic Elastomer Film offers superior elasticity, fatigue resistance, and eco-friendly processing (recyclability) compared to traditional PTFE or cross-linked polyurethane (PU) films.
Implementation Risks: Successful integration requires precise control over lamination temperatures and adhesive selection to prevent blocking the film's breathable pathways or degrading its waterproof barrier.
Understanding how barrier films function requires looking at the physical dimensions of water in its different states. A standard liquid water droplet ranges from 100 to 2,000 microns in diameter. It holds together tightly due to high surface tension. Conversely, a single water vapor molecule operates in the gas phase and measures roughly 0.0004 microns across. Barrier films exploit this massive size differential. They create a physical or chemical gateway that easily accommodates the microscopic vapor molecule while physically repelling the macroscopic liquid droplet.
You must also distinguish between vapor permeability and gas permeability. In material science, "breathability" refers strictly to water vapor transmission. It does not mean the material allows airborne gases like oxygen (O2) or carbon dioxide (CO2) to pass freely. Many industrial and medical applications require strict oxidation barriers alongside active moisture management. Engineers design the polymer matrix to ensure moisture escapes without allowing atmospheric gases to penetrate the protected environment, preventing food spoilage or chemical degradation.
Microporous films rely on a physical size exclusion mechanism. During manufacturing, operators blend the base polymer with inorganic fillers, typically calcium carbonate (CaCO3). After extruding the film, they run it through a Machine Direction Orientation (MDO) unit. This machine mechanically stretches the film at precise temperatures. The stretching pulls the polymer away from the rigid calcium carbonate particles, tearing open millions of microscopic pores. These pores typically measure between 0.1 and 10 microns. They are large enough for vapor molecules to navigate but far too small for liquid droplets to penetrate, as the water's surface tension bridges the microscopic gaps.
Monolithic films operate on solid-state diffusion. These films contain zero physical holes. Instead, they rely on hydrophilic (water-loving) polymer chains integrated directly into the elastomer matrix. These chemical blocks absorb moisture vapor from the high-humidity side of the barrier. They transport the moisture through the solid polymer via molecular diffusion and release it on the lower-humidity side. This process requires a distinct temperature and humidity gradient to drive the diffusion engine.
Feature | Microporous TPE | Monolithic TPE |
|---|---|---|
Transmission Mechanism | Physical size exclusion (pores) | Chemical solid-state diffusion |
Vapor Transfer Speed | Immediate (faster at low temps) | Gradient-dependent (requires heat/humidity) |
Pathogen/Viral Barrier | Low to Moderate (pores can allow passage) | Absolute (no physical holes) |
Contamination Risk | High (pores clog with dirt/oils) | Low (solid surface resists clogging) |
Gas Permeability (O2/CO2) | Moderate | Very Low (excellent gas barrier) |
Evaluating barrier films in a production environment requires strict empirical baselines. Subjective claims of breathability hold no weight in engineering. Industry-standard testing protocols provide the hard data necessary to specify the correct membrane for your intended application. You must measure how the material performs under specific environmental stressors to prevent field failures.
The Moisture Vapor Transmission Rate quantifies exactly how much moisture passes through a square meter of fabric over 24 hours. Laboratories measure MVTR in grams per square meter per day (g/m²/24hrs). Standardized tests, such as ASTM E96, dictate the exact temperature, humidity, and air velocity conditions for these measurements.
Testing facilities generally use two primary methods to determine MVTR:
Desiccant Method (Upright Cup): Technicians seal the film over a cup containing a desiccant. They place the cup in a controlled humidity chamber. The desiccant pulls moisture through the film, and technicians weigh the cup periodically to measure the mass of the transmitted vapor.
Water Method (Inverted Cup): Technicians seal the film over a cup containing distilled water and invert it so the water directly contacts the film. This simulates heavy sweating and typically yields much higher MVTR numbers, favoring monolithic films.
Basic industrial packaging may only require an MVTR of 1,000 g/m²/24hrs to prevent minor condensation. High-exertion athletic wear demands ultra-high MVTR ratings, often exceeding 20,000 g/m²/24hrs, to prevent catastrophic microclimate failure inside the garment.
Water resistance is quantified through hydrostatic pressure testing. Protocols like JIS L 1092 or ISO 811 measure the film's resistance to water penetration under increasing pressure. Technicians use a Suter tester, clamping the fabric over a sealed chamber and forcing water against the face of the material. They record the exact pressure at which the third drop of water penetrates the barrier. The industry measures this resistance in millimeters of water column (mmH2O).
Engineers constantly balance breathability against water resistance. An inverse relationship exists between pore size and hydrostatic resistance. Increasing the pore size boosts MVTR but drastically lowers the hydrostatic head. You must specify precise film thickness and optimize the polymer blending to achieve the ideal ratio. A thicker film increases the water barrier but creates a longer diffusion path for vapor, slowing down breathability.
Manufacturers combine MVTR and Hydrostatic Head data into standard commercial specifications. You will frequently encounter ratings like 10k/10k or 20k/20k on technical data sheets. The first number represents the hydrostatic head in millimeters. The second number represents the MVTR.
Commercial Rating | Hydrostatic Head (Waterproofness) | MVTR (Breathability) | Ideal Application |
|---|---|---|---|
5k / 5k | 5,000 mmH2O | 5,000 g/m²/24hrs | Light rain, low physical activity (urban wear, basic covers). |
10k / 10k | 10,000 mmH2O | 10,000 g/m²/24hrs | Moderate rain, moderate activity (skiing, hiking). |
20k / 20k+ | 20,000+ mmH2O | 20,000+ g/m²/24hrs | Heavy sustained rain, high exertion (mountaineering, running). |
The inherent elasticity of thermoplastic elastomers provides a massive advantage over rigid barrier films. Dynamic applications subject materials to constant stretching, twisting, and abrasion. High stretch and recovery rates ensure the membrane moves seamlessly with the outer face fabric. This elasticity prevents micro-tearing within the polymer matrix.
When a rigid polyethylene film undergoes repeated flexing, it develops microscopic stress fractures. These fractures compromise the waterproof barrier, leading to premature failure and leaks. Elastomeric films absorb this mechanical stress, stretch under load, and return to their original shape without permanent deformation. This dynamic durability is a critical requirement for wearable applications, inflatable structures, and flexible packaging.
Positioning TPE within the broader landscape of waterproof and breathable materials aids in accurate vendor selection. No single membrane solves every engineering challenge. Understanding the comparative strengths and weaknesses of available polymers ensures you specify the most efficient and sustainable option for your project.
Expanded polytetrafluoroethylene (ePTFE) holds historical dominance in extreme weather applications. It provides exceptional hydrostatic resistance and rapid vapor transmission through its node and fibril structure. However, PTFE presents significant engineering and environmental drawbacks. It lacks inherent elasticity, requiring complex lamination techniques to prevent the brittle membrane from tearing during dynamic movement.
Furthermore, PTFE manufacturing relies heavily on per- and polyfluoroalkyl substances (PFAS). TPE provides a highly competitive alternative. It offers superior elasticity, allowing for sleeker, more mobile garment designs. TPE manufacturing incurs lower costs, making high-performance barriers accessible to broader markets. Standard TPE formulations are entirely PFAS-free, aligning with increasingly strict global environmental regulations regarding forever chemicals.
When comparing TPE to polyurethane, chemical stability becomes the primary focus. Many PU films, particularly ester-based polyurethanes, are highly susceptible to hydrolysis. Prolonged exposure to moisture and heat causes the polymer chains to break down. This leads to delamination and a sticky, degraded membrane. TPE exhibits superior hydrolysis resistance, ensuring a longer functional lifespan in humid environments.
Compared to polyethylene, TPE wins on flexibility and durability. Microporous PE films are extremely cost-effective and highly breathable, dominating the disposable hygiene market. However, PE is rigid and prone to mechanical failure under stress. TPE provides the necessary stretch and recovery that PE lacks, making it suitable for durable, multi-use applications where mechanical load is a factor.
Modern material science demands closed-loop manufacturing potential. TPE excels in this area due to its melt-processable nature. Unlike thermoset plastics or complex fluoropolymer laminates, you can melt and reform TPE multiple times without significant degradation of its core mechanical properties.
This recyclability reduces industrial waste during the extrusion and lamination phases. Operators can regrind edge trim and off-spec rolls and reintroduce them directly into the production line. As end-of-life garment recycling infrastructure improves, monolithic TPE films laminated to compatible polyester face fabrics offer a realistic pathway to fully recyclable, mono-material performance apparel.
Different sectors weigh breathability against water resistance based on strict regulatory frameworks and end-user demands. You must understand how specific industries leverage the unique properties of elastomeric barrier films to solve their operational challenges.
The medical sector prioritizes monolithic TPE films for their flawless barrier properties. Surgical gowns, drapes, and advanced wound care dressings require strict compliance with standards like ASTM F1671. These materials must serve as absolute barriers to viral and blood-borne pathogens. A single microscopic flaw can compromise healthcare worker safety.
While blocking biohazards is paramount, thermal comfort remains critical. Medical staff perform high-stress tasks in heavily insulated environments. Monolithic films facilitate solid-state diffusion, pulling sweat vapor away from the body. This moisture management prevents heat stress and exhaustion while maintaining an impenetrable shield against liquid contaminants.

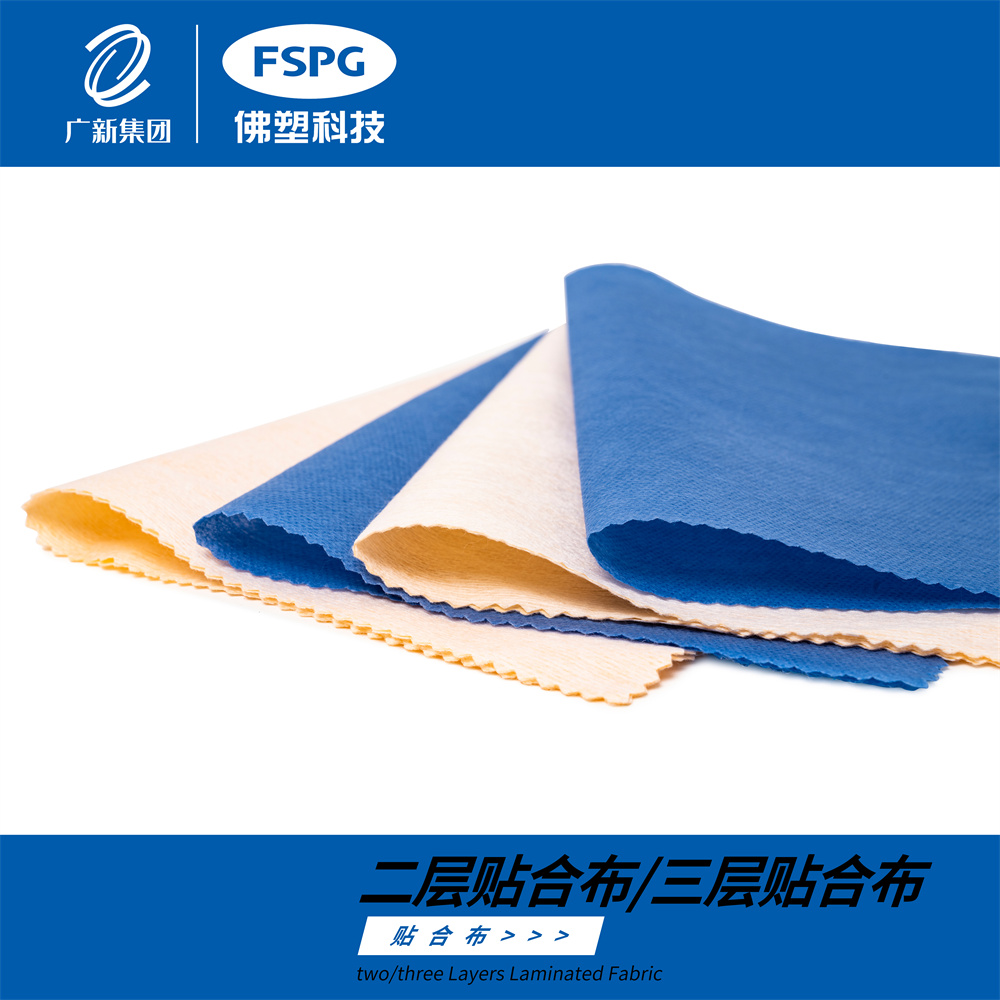

The outdoor gear industry integrates TPE membranes into complex multi-layer fabric laminates. End-user outcomes depend entirely on microclimate management. When athletes exert themselves, they generate up to a liter of sweat per hour. If the barrier film cannot transmit this vapor fast enough, the relative humidity inside the garment hits 100%, and sweat condenses on the inside of the fabric.
This accumulation creates a clammy feeling during high activity and leads to rapid, dangerous chilling when the activity stops. High MVTR ratings prevent this scenario. TPE films ensure all-day comfort by continuously venting moisture vapor while maintaining a high hydrostatic head against external rain, snow, and wind.
Scalability dictates material selection in industrial and construction applications. TPE films serve as premium roofing underlayments and house wraps. Buildings must breathe to prevent moisture accumulation within the wall cavities. Trapped moisture leads to rapid mold growth and structural rot. TPE wraps block external rain while allowing internal condensation to escape.
In the hygiene sector, manufacturers use thin-gauge TPE films for premium diapers and adult incontinence pads. Moisture management in these products is critical to prevent skin maceration and severe rashes. The elastomeric properties also provide a better, more comfortable fit compared to rigid plastic backsheets.
Engineering for production introduces technical hurdles that specifiers must address early in the design phase. Transitioning to or scaling up TPE film integration requires precise control over manufacturing parameters. Ignoring these implementation realities leads to compromised barrier performance and massive material waste.
The greatest risk during implementation is destroying the film's breathability during the lamination process. Applying a solid flood coat of traditional adhesive over a microporous or monolithic film completely blocks the moisture transmission pathways. The resulting fabric will remain waterproof, but the MVTR will drop to zero.
Mitigating this risk requires specific lamination techniques. Manufacturers utilize gravure roll dot-coating adhesive applications. By applying Polyurethane Reactive (PUR) hot-melt adhesives in a microscopic dot matrix, they bond the layers securely while leaving up to 80% of the film's surface area exposed. This preserves the breathable pathways while ensuring structural integrity against delamination.
Processing realities dictate strict temperature controls during film extrusion and secondary processing. Thermoplastic Elastomer Film requires specific thermal profiles to melt and flow correctly. If extrusion temperatures run too high, the polymer degrades, losing its elastomeric properties and tensile strength.
For microporous variants, thermal control during stretching and annealing is even more critical. Unintended temperature spikes on the MDO rollers can cause the newly formed microscopic pores to collapse and fuse shut. This pore collapse destroys the physical size exclusion mechanism, resulting in a film that is waterproof but entirely non-breathable. Tension control is equally vital to prevent premature stretching before the film reaches the orientation unit.
Lifecycle analysis shows that environmental exposure impacts barrier performance. UV radiation, body oils, dirt, and repeated laundering degrade the TPE barrier over time. Oils and detergents can contaminate monolithic films, altering their surface energy and reducing diffusion efficiency.
To mitigate this degradation, manufacturers must apply Durable Water Repellent (DWR) coatings to the outer face fabrics. DWR prevents the face fabric from absorbing water. If the face fabric saturates, a condition known as "wetting out," breathability halts entirely. The saturated fabric creates a solid liquid barrier that prevents vapor diffusion, regardless of the TPE film's internal capabilities.
Audit your current material specifications to determine your exact MVTR and Hydrostatic Head requirements based on end-user exertion levels and environmental exposure.
Request detailed Technical Data Sheets (TDS) from TPE film manufacturers to verify PFAS-free compliance and mechanical stretch properties.
Order sample rolls to conduct localized pilot testing, focusing specifically on ASTM E96 for breathability and ISO 811 for water resistance under your specific conditions.
Run a pilot lamination trial using PUR hot-melt dot-coating to ensure your adhesive application does not compromise the film's vapor transmission pathways.
Consult directly with polymer engineers to dial in the exact film thickness, stretch profile, and hydrophilic blending required for your unique laminate stack.
A: The difference lies in the hydrostatic head thresholds. Water-resistant films repel light rain and splashes but fail under continuous pressure. Waterproof films possess high hydrostatic head ratings, typically above 10,000 mmH2O, allowing them to withstand sustained, heavy water pressure without permitting liquid penetration.
A: These ratings provide a quick performance reference. The first number represents the hydrostatic head in millimeters (e.g., 10,000 mmH2O), indicating waterproofness. The second number represents the Moisture Vapor Transmission Rate (MVTR) in grams per square meter over 24 hours (e.g., 10,000 g/m²/24hrs), indicating breathability.
A: Breathability is measured using the Moisture Vapor Transmission Rate (MVTR). Standardized laboratory tests, such as ASTM E96, measure exactly how many grams of water vapor pass through one square meter of the film over a 24-hour period under strictly controlled temperature and humidity gradients.
A: No, standard TPE formulations are inherently free of per- and polyfluoroalkyl substances (PFAS). This chemical composition makes TPE a highly preferred, eco-friendly alternative to traditional PTFE membranes, aligning with strict global environmental regulations regarding forever chemicals.
A: TPE films are highly versatile and can be laminated to various substrates, including PET, Nylon, and non-wovens. However, successful lamination requires compatible, breathable adhesives and specific techniques like dot-coating to ensure the adhesive does not block the film's vapor transmission pathways.
A: Breathability halts when the outer face fabric wets out or saturates with water. This liquid layer blocks vapor escape. Additionally, if the humidity inside the barrier equals the humidity outside, the gradient disappears, halting the diffusion process required for moisture transmission.
A: It depends entirely on the application. Monolithic TPE is better for strict pathogen barriers, gas-blocking, and long-term durability against contamination. Microporous TPE is better for applications requiring faster, immediate vapor transmission under lower-pressure conditions, such as high-exertion activewear.
